bean dregs dryer ISO authorized rotary dryer from China manufacturer - Zhengzhou Dehong Machine Manufacturing Co., Ltd

bean dregs dryer ISO authorized rotary dryer

Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2800*18000

Packing: Customer requirements

Brand Name: Dehong

reliable manufacturer: China made bean dregs drye...

Means of Transport: Ocean,Land

Delivery Date: According to the contract w...

High efficiency: easy operation

2800×18000 Bean dregs (soybean curb residue) is a kind of bound water, large oil-based materials, water is not easily to remove.

Fully automatic and large capacity ISO certificate bean dregs dryer 2800*18000

Design of dehong bean dregs dryer:

The technological and all equipments' parameter, structure of theproduction line are being careful analysis and verified by theexperiment of drying the bean dregs, we fully take into account thelarge moisture content, high protein levels, big viscous and adopted aseries of unique original technology to solve these problem to ensure aperfect drying results

2800×18000 bean dregs dryer description:

A.2800×18000 Bean dregs dryer (soybean curb residue) is a kind of bound water, large oil-based materials, water is not easily to remove

We developed a complete equipment of dehydration drying equipment for bean dregs (soybean curb residue)

B. 2800×18000 Bean dregs was dehydrated through high pressure

Most of the water is lost in this way just in a minute

Then the bean dregs enter into the dryer

Bean dregs and the dry fresh hot air moving in the opposite direction under the effect of a special scraping wings (pusher plate) and dry-hot wind

This process is a little long, the temperature is relatively low and the material is running slowly

C.The 2800×18000 bean dregs dryer is a downstream drying and the outlet temperature is only 40°C

The whole drying process can fully use the thermal energy and the bean dregs even heated so the toasted bean dregs can have a good color, no burning material and low consumption

Application of 2800×18000 bean dregs dryer:

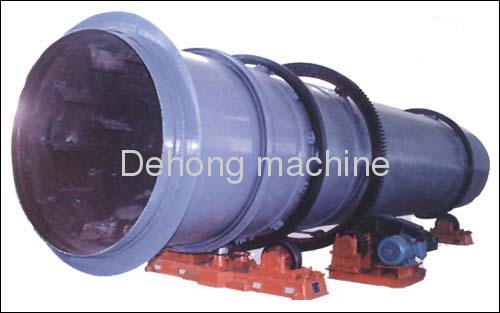

Bean dregs dryer consists of the heat source, feeding machine, rotary drum, discharging machine, induced draft fan, discharge devices, and distribution cabinet

The wet material is put into the dryer after dehydration

The material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller

Thus quicken the speed of drying, heat transferring and mass transferring

In the process of drying, the material can be sent out by the star unloading valve which is in the other end of the dryer under the action of the gradient plate and the hot mass

Main features of 2800×18000 bean dregs dryer

High degree of mechanization, large production capacity, and continuous option

Simple and excellent structure, material running smoothly through the cylinder, operating convenience

Less mechanical failure, low maintain charge, and power consumption

Uniformity of drying product is good

Drying production line using a special scattered installations to ensure the dryer's drying effect

Use innovative and unique sealing device, and sophisticated keep-warm system

Reduce the coal consumption of the system effectively

Whole system holds a good performance of sealing

With complete dust removal equipment

No dust spilling

With good operating environment

Whole drying system uses electric centralized control, auto-control of temperature for hot air, high automation and convenient operation

Can join in crushing, mixing, granulating, packing, and other follow-up steps after drying to produce the finished product of bean dregs particle feed

Main technical parameter:

Type

(mm)

Gradient
(°)

rotation speed(r/min)

input temperature

(ºC)

motor power

(kw)

output(t/h)

Weight

(t)
