Main features of 1000*10000 bean dregs dryer:
(1) High degree of mechanization, large production capacity, and continuous option
(2) Simple and excellent structure, material running smoothly through the cylinder, operating convenience
(3) Less mechanical failure, low maintain charge, and power consumption
(4) Uniformity of drying product is good
(5) Drying production line using a special scattered installations to ensure the dryer's drying effect
(6) Use innovative and unique sealing device, and sophisticated keep-warm system
(7) Reduce the coal consumption of the system effectively
(8) Whole system holds a good performance of sealing
(9) With complete dust removal equipment
(10)No dust spilling
(11)With good operating environment
(12)Whole drying system uses electric centralized control,auto-control of temperature for hot air, high (13) automation andconvenient operation
(13)Can join in crushing, mixing, granulating, packing, and otherfollow-up steps after drying to produce the finished product of beandregs particle feed

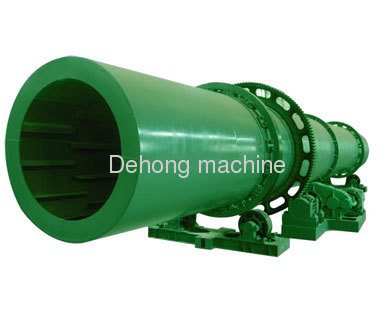

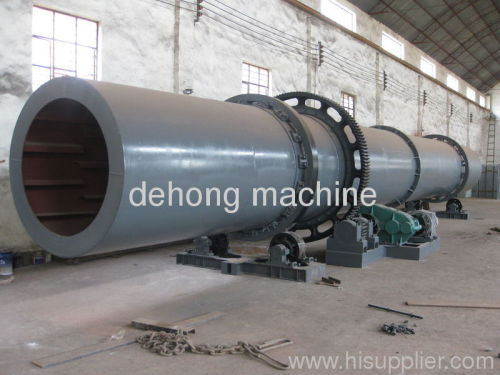

Mechanical structure of 800*10000 bean dregs dryer
Bean dregs dryer consists of the heat source, feeding machine, rotary drum, discharging machine, induced draft fan, discharge devices, and distribution cabinet
The wet material is put into the dryer after dehydration
The material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller
Thus quicken the speed of drying, heat transferring and mass transferring
In the process of drying, the material can be sent out by the star unloading valve which is in the other end of the dryer under the action of the gradient plate and the hot mass
The technological and all equipments' parameter, structure of the production line are being careful analysis and verified by the experiment of drying the bean dregs, we fully take into account the large moisture content, high protein levels, big viscous and adopted a series of unique original technology to solve these problem to ensure a perfect drying results
Main technical parameter of Widely used 800*10000 bean dregs dryer with ISO authorization
Type (mm) | Gradient (°) | rotation speed(r/min) | input temperature (ºC) | motor power (kw) | output(t/h) | Weight (t) |
Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
