Ferrous and Non-ferrous Metals Flotation Device for sale

Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land

Packing: Customer requirements

Type: Separator

new flotation machine: separating ferrous and non-...

Dehong mining machinery made in China: mining machinery flotation ...

Production Capacity: 100 pieces

Delivery Date: According to the contract w...

Brand Name: Dehong

est Gold machinery: Ferrous and Non-ferrous Metals Flotation Device Flotation Machine: good quality flotation mach...

1.Easy and safe operation
2.Stable performance
3.High efficiency
4.Best price best quality

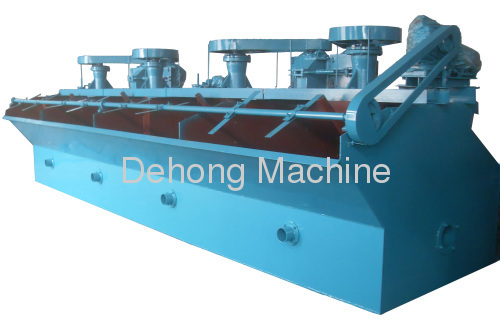

Ferrous and Non-ferrous Metals Flotation Divice

Quick Details of flotation machine

Place of Origin: Zhengzhou Henan China     Brand Name: Zhengzhou Dehong
Type: Flotation Separator   Condition: New   Color: As request
Application: copper, lead, zine, nickel    Installation: under our engineer's guide
Warranty: one year Service: After sale: for the whole using life
Certificate: ISO9001.ECcertificate

Packaging and Delivery of Flatation machine

Packaging Detail: Main machine in nude motor and other parts in wooden case
Delivery Detail: 15-30 working days after advance payment

Flotation Machine for gold, silver, cooper, zinc, lead, Flotation Machine, Flotation Equipment

Flotation Machine is applicable for separatin non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed,

Flotation Machine for gold, silver, cooper, zinc, lead, Flotation Machine, Flotation Equipment

The application of Ferrous and Non-ferrous Metals Flotation Divice

Ferrous and Non-ferrous Metals Flotation Device is used for separating ferrous and non-ferrous metals. Ferrous and Non-ferrous Metals Flotation Device can also be used for separating non-metals like coal fluorite and speck stone.

The working principle of ferrous and non-ferrous metals flotation device

The impeller is rotated by vee belt of electric motor and produces centrifugal function resulting in negative pressure. One hand,Ferrous and Non-ferrous Metals Flotation Device sucks into enough air to mix with pulp and fine the foam in order that the mineral can stick on the foam. Then it turns into mineral foam after floating on the pulp. Adjust the height of stopper to control fluid level in order that the available foam can be scrapped out by scrappers.

main technical parameter of Ferrous and Non-ferrous Metals Flotation Device :

XJK

Model	Volume (m³)	Impeller Dia (mm)	Capacity (m3/min)	Impeller Speed (r/min)	Scraper Speed r/min	Impeller motor		Scraper motor		Dimensions L×W×H(mm)	Weight (t)
Model	Volume (m³)	Impeller Dia (mm)	Capacity (m3/min)	Impeller Speed (r/min)	Scraper Speed r/min	Model	Power (kw)	model	power (kw)
XJK-0.13(1A)	0.13	200	0.05-0.16	600	17.5	Y100L1-4	2.2	Y80M1-4	0.55	2110×865×990	0.35
XJK-0.23(2A)	0.23	250	0.12-0.28	500	17.5	Y90L-4	1.5	Y80M1-4	0.55	2625×1130×1290	0.42
XJK-0.35(3A)	0.35	300	0.18-0.4	470	17.5	Y90L-4	1.5	Y80M2-4	0.75	3012×1350×1327	0.45
XJK-0.62(4A)	0.62	350	0.3-0.9	400	26	Y100L2-6	3	Y80M2-4	0.75	3798×1464×1530	0.85
XJK-1.1(5A)	1.1	500	0.6-1.6	330	26	Y132M2-6	5.5	Y90S-4	1.1	4679×1820×1942	1.24
XJK-2.8(6A)	2.8	600	1.5-3.5	280	26	Y160L-6	11	Y90S-4	1.1	7750×1600×1100	2.43

KYF

Model		KYF-1	XCF-2	XCF-3	XCF-4	XCF-8
Volume (m3)		1	2	3	4	8
Impeller dia(mm)		340	410	480	550	630
Capacity (m3/min)		0.2-1	0.5-2	0.7-3	1-4	2-8
Impeller Speed (r/min)		281	247	219	200	175
Motor	Model	Y132M1	Y160M2-6	Y160L-6	Y180L-8	Y200-8
	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4
	Power(kw)	4	5.5	7.5	11	15
	Power(kw)	1.1	1.1	1.5	1.5	1.5
